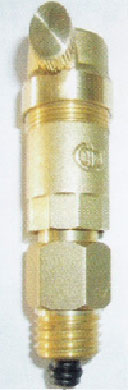

These automatic air purge valves are used in water and heating systems to vent entrapped air during the normal working or circuit filling. By using Air Release Valve, we have the advantage of reducing noise, wear & tear of devices in the circuit which leads to good performance of the piping systems. It also eliminates the need of the vent pipe for OH tank in Plumbing.

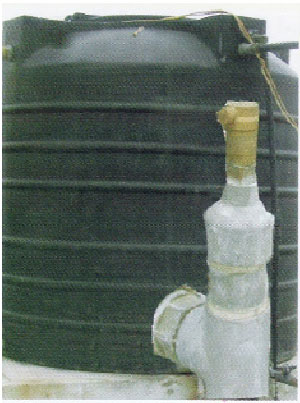

It is recommended to install the valve in accessible area. To effectively vent the piping system turn the cap anticlockwise by at least one turn from closed position.
Technical Features:
Working Temp. Range |
5°C to 90°C |
Maximum Venting pressure |
10 Bar |
Maximum Venting pressure |
4 Bar |
Threads |
½” BSP |
Medium |
Water |
